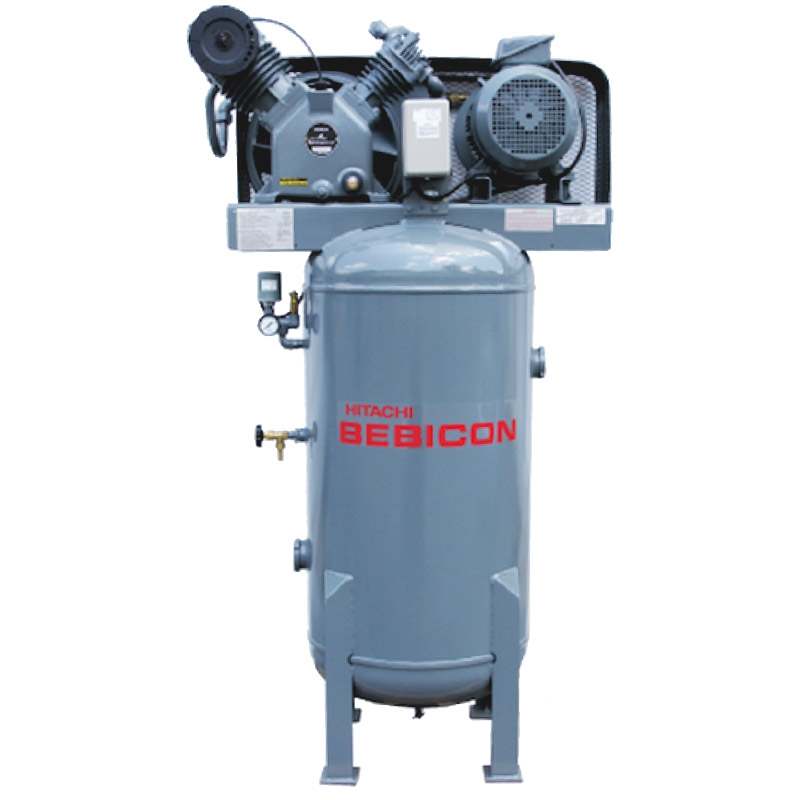

Lubricated Bebicon (Vertical Tank)

Piston Compressor

Specifications

Pressure Switch Control Type
Air Capacity: 400 – 760 L/min
Air Tank Volume: 300 L
Max. Dischage Pressure: 1.23 MPa (1.37)

Introduction

The Hitachi Lubricated (oil-flooded) Bebicon compressor is a heavy duty piston compressor designed to operate long hours. Suitable for manufacturing industries, automotive service workshops, spray painting and pneumatic tools.

Compressor Head

  • High performance. High reliability. Compact and light. Easy to maintain.

Good Cooling Design

  • The cylinder head uses an aluminium alloy and ventilated rib to improve heat radiation and air capacity.
  • The V-groove design is located between the discharge and suction chamber to reduce the heat transfer and improve air capacity.

Standard Accessories

  • Pressure Gauge
  • Safety Valve
  • Hose Joint
  • Belt Cover
  • Silencer
  • Stop Valve

Parameters

Model Motor Nominal
Output (kW)
Power Source
(PH)
Air Capacity
(L/min)
Air Tank
Volume (L)
Air Outlet Size W x D x H
(mm)
Weight
(kg)

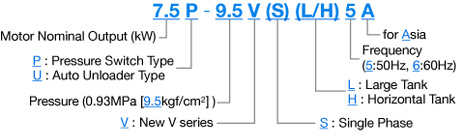

3.7P-12.5(14)V5A
3.7P-12.5(14)V6A
3.7 3 400 300 3/8B x 1 957 x 590 x 1732 420
5.5P-12.5(14)V5A
5.5P-12.5(14)V6A
5.5 3 550 300 3/8B x 1 1025 x 611 x 1734 450
7.5P-12.5(14)V5A
7.5P-12.5(14)V6A
7.5 3 760 300 3/4B x 1 1102 x 634 x 1814 480

Remarks

  1. Use the compressor at a place where ambient temperature is 0 (at which there is no freeze of drain water) to 40 °C.
  2. The capacity of compressed air is the amount of air discharged under the maximum pressure converted in terms of air suction (atmospheric pressure, ambient temperature 20 °C, humidity 60%).
  3. Hitachi air compressors are not designed, intended, or approved for breathing air applications.
