Oil Free Bebicon

Piston Compressor

Specifications

Pressure Switch Type & Automatic Unloader Type

Air Capacity: 75 – 1,285 L/min
Air Tank Volume: 80 – 290 L
Max. Dischage Pressure: 0.8 – 0.93 MPa

Introduction

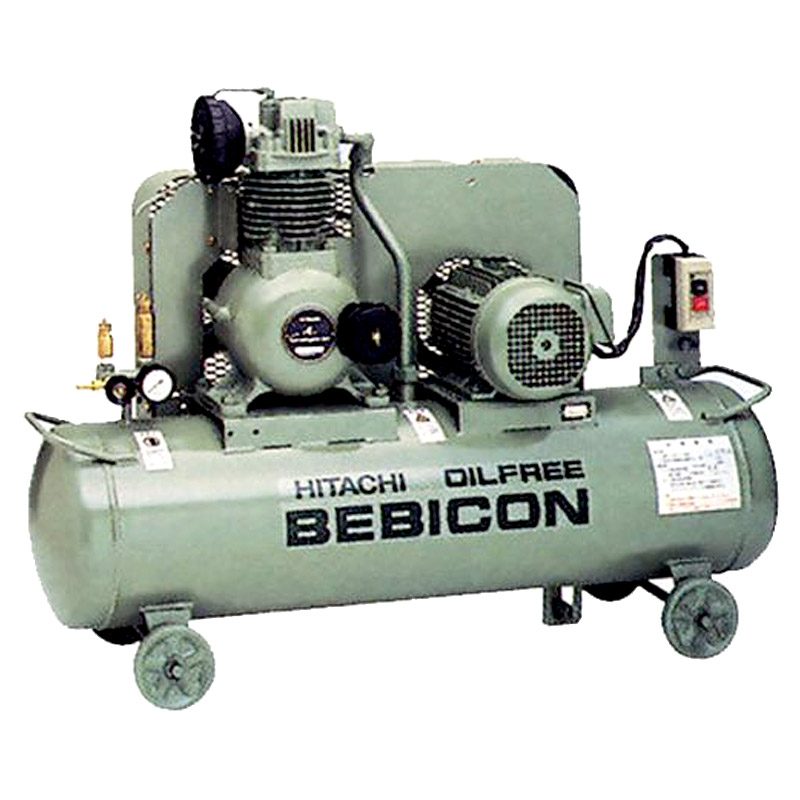

The Hitachi oil free Bebicon compressor is a heavy duty piston compressor designed to operate long hours. Suitable for manufacturing industries that range from electronics to food and beverage.

Compressor Head

  • Oil-free air supply. High performance. Durable design. Long overhaul cycle.

Good Cooling Design

  • The cylinder head uses an aluminium alloy and ventilated rib to improve heat radiation and air capacity.
  • The V-groove design is located between the discharge and suction chamber to reduce the heat transfer and improve air capacity.

Heat Cut Piston Pin Design

  • This design consists of heat-insulating materials which reduces heat transfer from the piston to the needle bearing. This reduces the temperature of the bearing and improving the overall reliability.

Leak Cut Piston Ring Design

  • The piston ring has a specially shaped abutment joint which reduces air leakage and improves air capacity.

Standard Accessories

  • Pressure Gauge
  • Safety Valve
  • Hose Joint
  • Belt Cover
  • Silencer
  • Stop Valve

Parameters (Automatic Unloader Type)

Model Motor Nominal
Output (kW)
Power Source
(PH)
Max. Discharge
Pressure (MPa)
Air Capacity
(L/min)
Air Tank
Volume (L)
Air Outlet Size W x D x H
(mm)
Weight
(kg)
1.5OU-9.5GS5A
1.5OU-9.5GS6A
1.5 1 0.93 165 80 1/4Bx1 1173 x 431 x 913 121
1.5OU-9.5G5A
1.5OU-9.5G6A
1.5 3 0.93 165 80 1/4Bx1 1173 x 393 x 913 110
2.2OU-9.5GS5A
2.2U-9.5GS6A
2.2 1 0.93 240 90 1/4Bx1 1283 x 434 x 852 150
2.2OU-9.5G5A
2.2U-9.5G6A
2.2 3 0.93 240 90 1/4Bx1 1283 x 403 x 852 129
3.7OU-9.5G5A
3.7U-9.5G6A
3.7 3 0.93 405 125 3/8Bx1 1345 x 423 x 942 158
5.5OU-9.5G5A
5.5U-9.5G6A
5.5 3 0.93 605 150 3/8Bx1 1470 x 482 x 1010 201
7.5OU-8.5GA5A
7.5U-8.5GA6A
7.5 3 0.83 880 235 3/4Bx1 1674 x 550 x 1076 282
11OU-8.5GA5A
11U-8.5GA6A
11 3 0.83 1285 290 3/4Bx1 2014 x 646 x 1153 400

Parameters (Pressure Switch Type)

Model Motor Nominal
Output (kW)
Power Source
(PH)
Max. Discharge
Pressure (MPa)
Air Capacity
(L/min)
Air Tank
Volume (L)
Air Outlet Size W x D x H
(mm)
Weight
(kg)
0.4LE-8S5A 0.4 1 0.8 42 20 1/4Bx1 600 x 322 x 608 30
0.75OP-9.5GS5A
0.75OP-9.5GS6A
0.75 1 0.93 75 80 1/4Bx1 1173 x 380 x 852 90
0.75OP-9.5G5A
0.75OP-9.5G6A
0.75 3 0.93 75 80 1/4Bx1 1173 x 380 x 852 85
1.5OP-9.5GS5A
1.5OP-9.5GS6A
1.5 1 0.93 165 80 1/4Bx1 1173 x 431 x 897 121
1.5OP-9.5G5A
1.5OP-9.5G6A
1.5 3 0.93 165 80 1/4Bx1 1173 x 393 x 897 110
2.2OP-9.5GS5A
2.2OP-9.5GS6A
2.2 1 0.93 240 90 1/4Bx1 1283 x 434 x 825 150
2.2OP-9.5G5A
2.2OP-9.5G6A
2.2 3 0.93 240 90 1/4Bx1 1283 x 403 x 825 129
3.7OP-9.5G5A
3.7OP-9.5G6A
3.7 3 0.93 405 125 3/8Bx1 1345 x 423 x 913 158
5.5OP-9.5G5A
5.5OP-9.5G6A
5.5 3 0.93 605 150 3/8Bx1 1470 x 482 x 995 201
7.5OP-8.5GA5A
7.5OP-8.5GA6A
7.5 3 0.83 880 235 3/4Bx1 1674 x 552 x 1045 282
11OP-8.5GA5A
11OP-8.5GA6A
11 3 0.83 1285 290 3/4Bx1 2014 x 646 x 1153 400

Remarks

  1. Use the compressor at a place where ambient temperature is 0 (at which there is no freeze of drain water) to 40 °C.
  2. The capacity of compressed air is the amount of air discharged under the maximum pressure converted in terms of air suction (atmospheric pressure, ambient temperature 20 °C, humidity 60%).
  3. These air compressors are not designed, intended, or approved for breathing air applications.
